If you’re on an Apple Silicon Mac, the --platform linux/amd64 flag is required.
1.2 Step 1 — One-time setup inside the container
In RStudio → Terminal:
cd /home/rstudio/projectbash setup_venv.sh
(Optional sanity check)
cd /home/rstudio/projectsource _environmentquarto check jupyter
1.3 Step 2 — Render (optional)
cd /home/rstudio/projectsource _environmentquarto render cogaps_case_study4_student.qmd
1.4 Important note about distributed / multiprocessing
Do not run distributed CoGAPS during Quarto render.
Quarto executes every code chunk when rendering, and long-running / multi-process steps can fail or make renders painfully slow.
If you want distributed CoGAPS, run it from Terminal using the provided script (see the optional section near the end), then come back and load the result in this notebook.
2 Overview
This case study applies CoGAPS (Bayesian NMF) to single-cell RNA-seq PBMCs under control vs IFN-β stimulation (Kang et al., 2018; GEO: GSE96583).
Learning goal: use a latent factor model to separate:
Cell identity programs (stable lineage modules; “what a cell is”)
Cellular activity programs (stimulus-induced modules; “what a cell is doing”)
2.1 Research questions
Q1: What transcriptional programs respond to IFN-β stimulation across PBMCs? Q2: Can we separate “cell type identity programs” from the “interferon response program”? Q3: How does interferon-response pattern strength vary across immune cell types?
import timeimport numpy as npimport pandas as pdimport scanpy as scimport matplotlib.pyplot as pltimport seaborn as snsfrom IPython.display import displaynp.random.seed(42)plt.rcParams["figure.dpi"] =110
5 3. Load data
The dataset is baked into the Docker image at:
/opt/data/kang_counts_25k.h5ad
If it is not found, we fall back to downloading via Figshare.
path_img ="/opt/data/kang_counts_25k.h5ad"path_local ="kang_counts_25k.h5ad"if os.path.exists(path_img):print(f"Loading dataset from image: {path_img}") adata = sc.read(path_img)else:print("Image dataset not found; using local path or downloading via backup_url.") adata = sc.read( path_local, backup_url="https://figshare.com/ndownloader/files/34464122", )adata
Loading dataset from image: /opt/data/kang_counts_25k.h5ad
if"condition"notin adata.obs and"label"in adata.obs: adata.obs["condition"] = adata.obs["label"]required = ["condition", "cell_type"]missing = [c for c in required if c notin adata.obs.columns]assertnot missing, f"Missing required columns in adata.obs: {missing}"adata.obs[["condition", "cell_type"]].head()
condition
cell_type
index
AAACATACATTTCC-1
ctrl
CD14+ Monocytes
AAACATACCAGAAA-1
ctrl
CD14+ Monocytes
AAACATACCATGCA-1
ctrl
CD4 T cells
AAACATACCTCGCT-1
ctrl
CD14+ Monocytes
AAACATACCTGGTA-1
ctrl
Dendritic cells
6 4. Dataset overview
from textwrap import filldef wrap(text, width=90):return fill(text, width=width)overview = pd.DataFrame({"Item": ["Number of cells","Number of genes","Cell-level metadata (obs)","Gene-level metadata (var)","Embeddings available" ],"Summary": [f"{adata.n_obs:,}",f"{adata.n_vars:,}", wrap(", ".join(adata.obs.columns), width=90), wrap(", ".join(adata.var.columns), width=90),", ".join(adata.obsm.keys()) ]})overview
Item
Summary
0
Number of cells
24,673
1
Number of genes
15,706
2
Cell-level metadata (obs)
nCount_RNA, nFeature_RNA, tsne1, tsne2, label,...
3
Gene-level metadata (var)
name
4
Embeddings available
X_pca, X_umap
6.1 Categorical distributions
def summarize_categorical(adata, col): vc = adata.obs[col].value_counts()return vc.reset_index().rename(columns={"index": col, col: "n_cells"})for col in ["condition", "cell_type", "replicate"]:if col in adata.obs: display(summarize_categorical(adata, col).head(50))

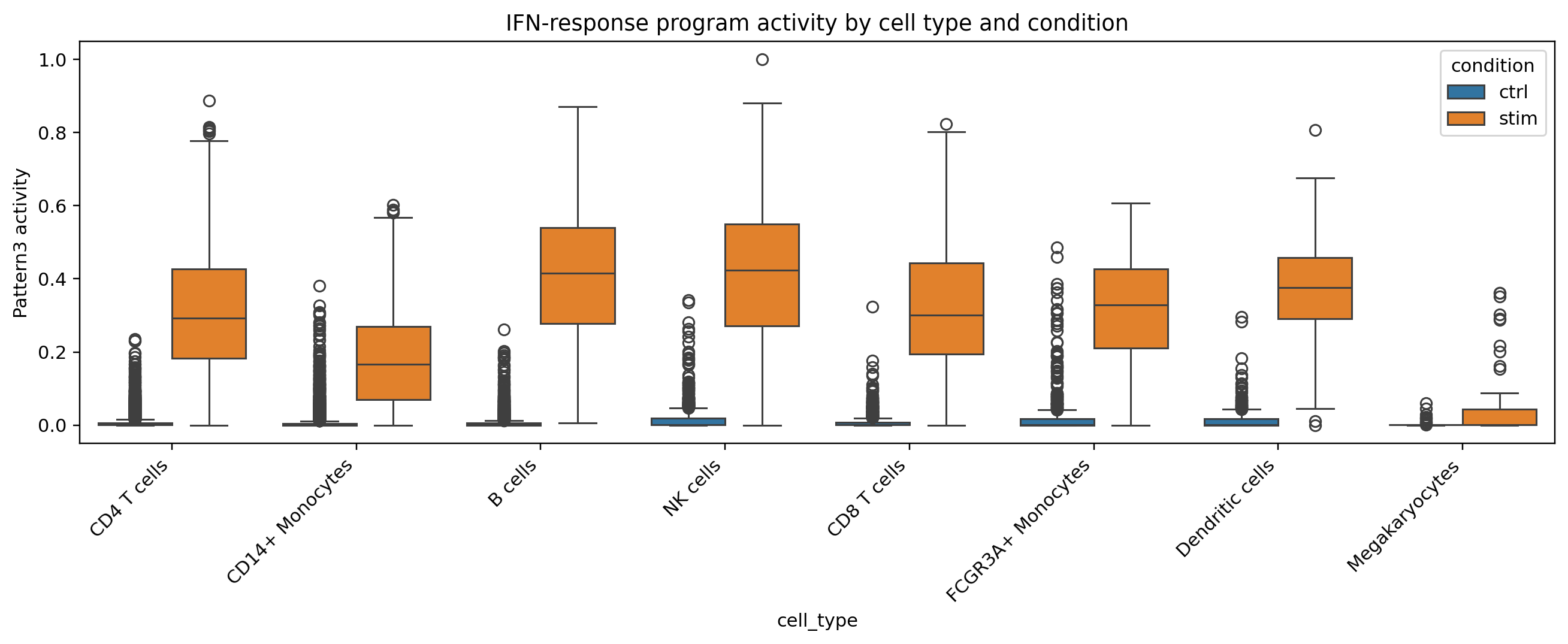

plt.figure(figsize=(12, 5))sns.boxplot(data=df_isg, x="cell_type", y=isg_pattern, hue="condition")plt.xticks(rotation=45, ha="right")plt.ylabel(f"{isg_pattern} activity")plt.title("IFN-response program activity by cell type and condition")plt.tight_layout()plt.show()
16 14. Pattern gene summaries (interpretability)
for pat in pattern_names:print(f"\n=== {pat}: top genes ===") display(A[pat].sort_values(ascending=False).head(12))
Your error happened because the distributed script is currently trying to read kang_counts_25k.h5ad from the project directory, then downloading a file that ends up corrupt/empty (0 bytes), which causes:
OSError: Unable to open file (file signature not found)
Then run distributed from Terminal:
cd /home/rstudio/projectsource _environment./.venv/bin/python run_pycogaps_distributed.py
If you ran the script successfully and it created data/cogaps_result_distributed.h5ad, you can load it below.
dist_path ="data/cogaps_result_distributed.h5ad"if os.path.exists(dist_path): dist_result = sc.read_h5ad(dist_path) dist_resultelse:print("Distributed result not found. Run run_pycogaps_distributed.py from Terminal first.")
Distributed result not found. Run run_pycogaps_distributed.py from Terminal first.
18 Final answers (summary)
Q1: Identify the pattern most correlated with stimulation; validate using top genes (expected ISG enrichment).
Q2: Identity patterns localize by cell type; the IFN response pattern shows condition association across cell types.
Q3: Compare IFN pattern activity by immune cell type (and split by condition) to quantify heterogeneity.
19 References
Kang, H. M., Subramaniam, M., Targ, S., Nguyen, M., Maliskova, L., McCarthy, E., … Ye, C. J. (2018). Multiplexed droplet single-cell RNA-sequencing using natural genetic variation. Nature Biotechnology, 36(1), 89–94. https://doi.org/10.1038/nbt.4042
Kotliar, D., Veres, A., Nagy, M. A., Tabrizi, S., Hodis, E., Melton, D. A., & Sabeti, P. C. (2019). Identifying gene expression programs of cell-type identity and cellular activity with single-cell RNA-Seq. eLife, 8, e43803. https://doi.org/10.7554/eLife.43803
Stein-O’Brien, G. L., Clark, B. S., Sherman, T., Zibetti, C., Hu, Q., Sealfon, R., … Fertig, E. J. (2019). Decomposing cell identity for transfer learning across cellular measurements, platforms, tissues, and species. Cell Systems, 8(5), 395–411.e8. https://doi.org/10.1016/j.cels.2019.04.004
Fertig, E. J., Ding, J., Favorov, A. V., Parmigiani, G., & Ochs, M. F. (2010). CoGAPS: An R/C++ package to identify patterns and biological process activity in transcriptomic data. Bioinformatics, 26(21), 2792–2793. https://doi.org/10.1093/bioinformatics/btq503
